OnePlan Migration Tool - Setup

  • Updated

The OnePlan Migration Tool facilitates the import of structured data from comma separated (CSV UTF-8) files into OnePlan. It supports various OnePlan entities and is designed for one-time migrations, not ongoing integrations.

OnePlan

To complete the OnePlan setup, you need to be an admin (user with Owner permissions) in OnePlan. If the Advanced Settings are enabled for your group, continue to the next steps. If the Advanced Settings are NOT enabled, contact OnePlan for assistance.

  1. Log into your OnePlan group using your OnePlan login credentials.
  2. Access the Admin pages by clicking on the settings (gear) icon at the top right of the browser.
  3. Navigate to the Integration section in the left navigation panel.
  4. Next to the Authentication Keys section click the + Add Key button.
  5. Provide a descriptive name or title for the Authentication Key to denote its purpose, like "Migration Tool", then click ADD.
  6. Store the OnePlan group name and the Authentication Key securely. This grants access to your OnePlan group for any program. Please note that the key will no longer be visible after the page is refreshed.

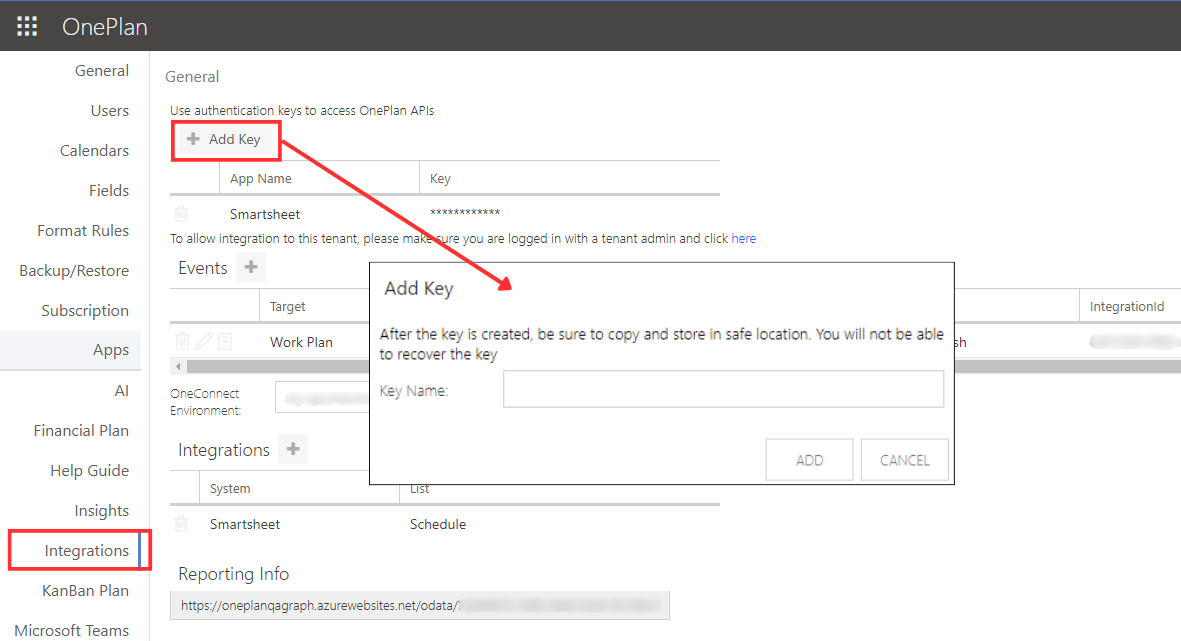

2024 Authentication Key Img.png



OneConnect Setup Process

Note

To complete the OneConnect setup, you need to be an Administrator or Editor in the OneConnect group.

  1. Go to https://my.oneconnect.ai (or https://eu.oneconnect.ai for European customers utilizing eu.oneplan.ai)
  2. Click on the Add Integration button.
  3. Find the OnePlan Migration Tool tile.
  4. Click on the tile.



Tabular Data Connector

Connecting to a file for Tabular Data involves three key sections, each with its associated fields.

  1. Authorize button: This button must be authenticated by a Microsoft Tenant Administrator. This is required for the service principle connection. Please review this article for more information.
  2. Locating CSV - For the tool to connect to the CSV file, these fields must be filled out:
    1. SharePoint or OneDrive URL: Enter the SharePoint/OneDrive URL where the file is located. (e.g., https://{OrganizationName}.sharepoint.com/sites/{SiteName}).
    2. Folder Path: The folder where the file is located.

Enter the filenames for each csv file that you are planning to use:

  1. Plan Import File Name - use it if you are importing plans
  2. WorkPlan Import File Name - use it if you are importing tasks or similar work plan items
  3. Resource Import File Name - use it if you are importing resources
  4. Resource Plan Import File Name - use it if you are importing resource plans

  5. Financial Cost Import File Name - use it if you are importing financials


    These fields are under the Advanced Options.

    Test & Save - Confirm the connection to SharePoint/OneDrive authenticates and save your settings. These buttons are located at the bottom of your connector.

    1. Test the connection to verify the settings. A notification indicating Connected Successfully should appear in the top-right corner of the browser upon successful testing.
    2. Save the configuration to finalize setup.



OnePlan Connector

Connecting to OnePlan involves three key sections, each with its associated fields.

  1. Connect to OnePlan -
    1. Optional: Group Name: The name of the OnePlan Group you intend to integrate with.
    2. Authentication Key: Paste the generated OnePlan Authentication Key obtained from OnePlan.
    3. Optional: Alternate OnePlan Environment URL: If using an environment other than the default environment, select the appropriate URL from the available options. Located in Additional Options.
  2. Additional Integration Settings - These optional settings will modify how the integration functions to better suit your needs.
    1. Optional: OnePlan Default Plan Type: In case a plan lacks a designated plan type in the CSV file, the specified value here will serve as the default plan type. Located in Additional Options.
  3. Test & Save - Confirm the connection to OnePlan authenticates and save your settings. These buttons are located at the bottom of your connector.
    1. Test the connection to verify the settings. A notification indicating Connected Successfully should appear in the top-right corner of the browser upon successful testing.
    2. Save the configuration to finalize setup.

Tabular Data Integration OnePlan Settings.png
