Set Up the OnePlan Connector in Power Automate

  • Updated

This article explains how to set up Power Automate to be used with OnePlan.

Note

This article does not include instructions on how to create flows in Power Automate. Refer to the documentation from Microsoft for instructions to create flows.

Important Information

Before you begin setting up the OnePlan Connector in Power Automate, there are a couple of items that you need to know:

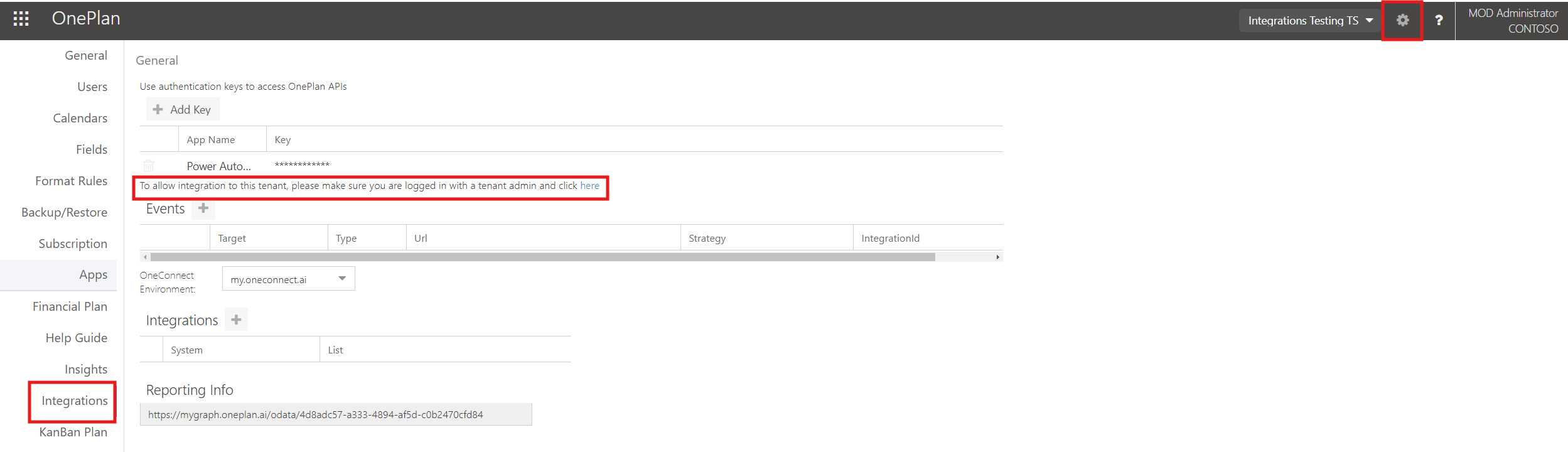

  • Your tenant administrator needs to approve OnePlan integrations for your tenant if they have not already done so. To approve integrations, go to the OnePlan configuration > Integrations. Below the Authentication Key section is a link the tenant admin can follow to make their approvals.
    Approve Integrations.png
  • The person setting up the integration needs Owner permissions for OnePlan.
  • The person setting up this integration needs a Power Automate Premium license.
  • Keep both OnePlan and Power Automate open in separate tabs in your browser throughout the entire setup process.

Download JSON File

Click here to download the JSON file.

You can also fine the attached JSON file at the bottom of this article.

Upload JSON File to Power Automate

  1. Log in to Power Automate from Microsoft 365.

    Open Power Automate.png

  2. Select Custom connectors from the left navigation bar.

    Select Custom Conectors from Left Nav.png

    Note

    If Custom connectors is not an option in your navigation bar, click Discover, locate Custom connectors from the list of options, and click the Pin icon to add it to your navigation bar.

    Add Custom Connectors to menu.png

  3. Open the New custom connector menu. Select Import an OpenAPI file. The Create a custom connector form will open.

    Import and Open API file Option.png

  4. Enter "OnePlan" into the Connector name field.

  5. Click Import. Navigate to the saved the JSON file on your computer using the file browser. Then click Open.
    Select JSON file.png

  6. Click Continue.
    Click Continue.png

Set Up the Connector In Power Automate

After the JSON file is imported into Power Automate, you must finish setting up the OnePlan connector. Once you click Continue, you will be taken to the connector settings.

  1. In the General tab, do not input or update any content. Click Security.

    Note

    The Host URL can be updated for different OnePlan URLs. For example, eu.oneplan.ai.

    Connector Settings General Tab.png

  2. In the Security tab, do not input or update any content. Click Definition.

    Note

    Editing the fields in Security will break your connector. Do not edit.

    Connector Settings Security Tab.png

  3. In the Definition tab, do not input or update any content. Click AI Plugin (Preview).

    Connector Settings Definition Tab.gif
  4. In the AI Plugin (Preview) tab, do not input or update any content. Click Code.
    Connector Settings AI Plugin Tab.png

  5. In the Code tab, do not input or update any content. Click Test.

    Connector Settings Code Tab.png

  6. In the Test tab, click Create connector. Once the connector is created, the Test Operation and Operations panels will open. Leave this window open for the next steps.

    Connector Settings Definition Tab (1).gif

Connect OnePlan to Power Automate

Note

For these steps, you must have OnePlan Admin pages and Power Automate open in separate tabs in your browser.

  1. Go to your OnePlan group and click the gear icon to access the OnePlan Configuration.
  2. Go to Integrations.

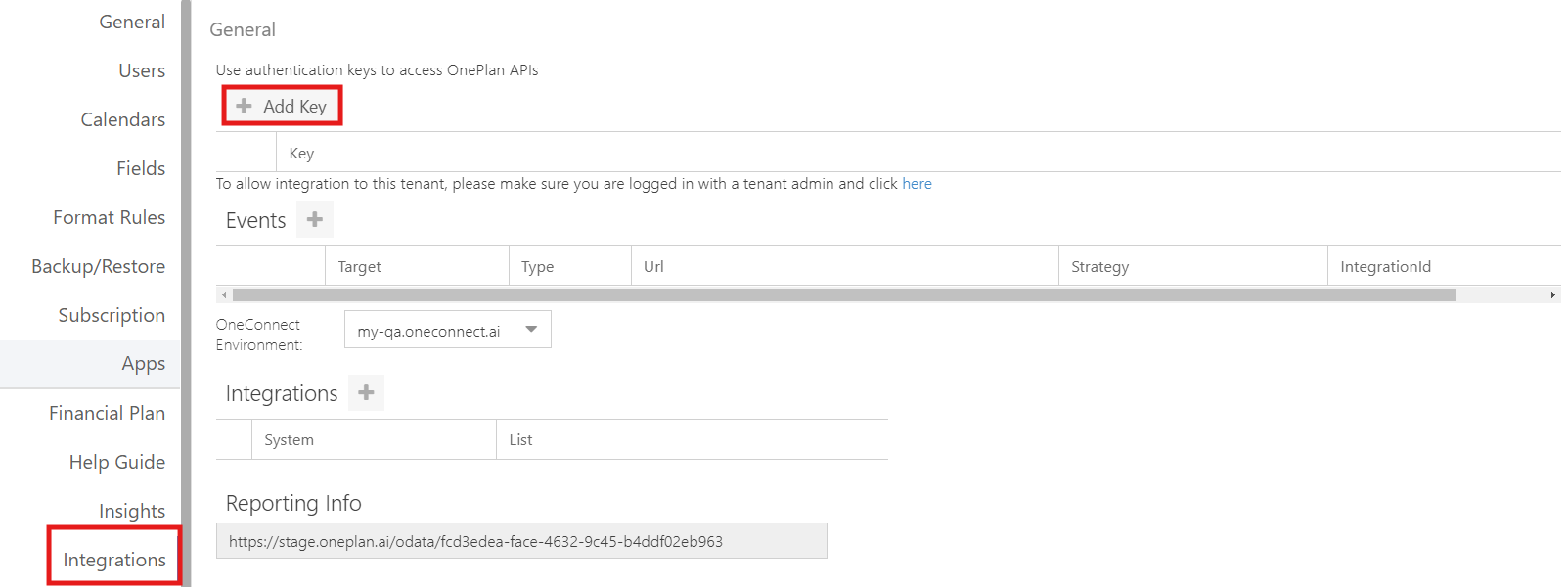

    Integrations Add Key.png
  3. Click Add Key to create a new authentication key. The Add Key form will open.

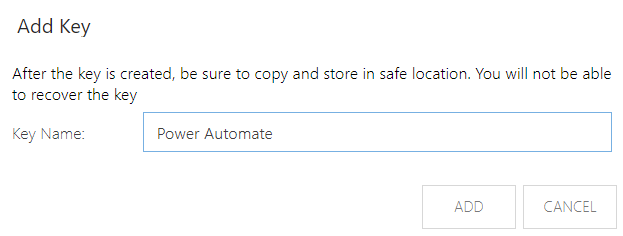

  4. Enter the name for the key. Copy the Key Name and save it for later use. Then click Add.
    Add Key Name.png

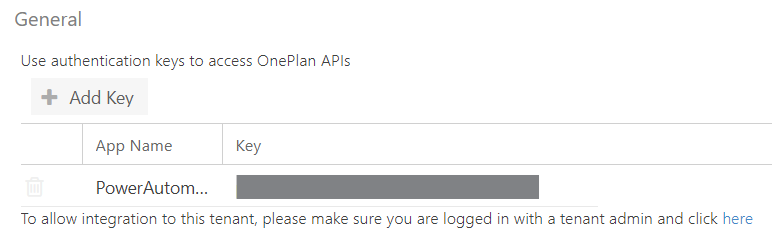

  5. Copy the new Authentication Key and save it for later use.
    Copy Authentication Key.png

    Note

    The authentication key will be hidden once you navigate away from the page. Once hidden, you cannot retrieve the key again.

  6. Return to the Power Automate tab from step 6 of Set Up the Connector In Power Automate.

  7. In the Test operation section, in the Connections panel, click New Connection.

    Test operation Create Connection.png

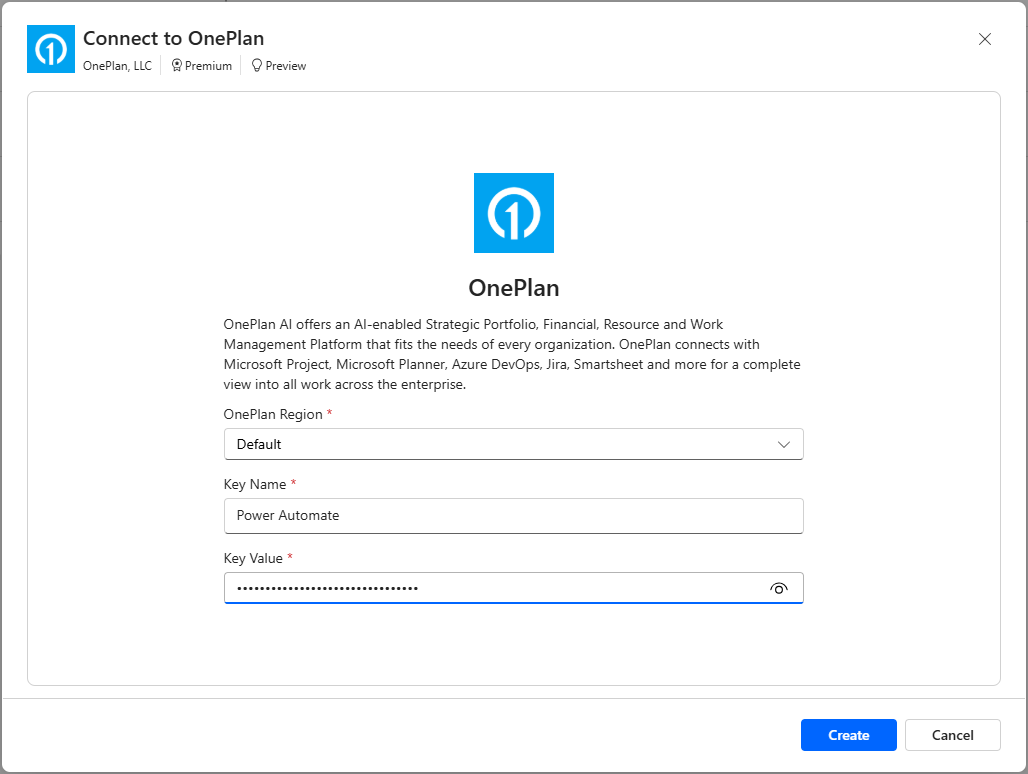

  8. In the Username field, enter the Key Name you saved from step 4. In the Password field, enter the Authentication Key you saved from step 5. Then click Create connection.
    Enter Username and Password.png

  9. Click the Refresh icon in the Connections panel. The Selected connection field will populate.
    Click Refresh and Populate Selected connection.png

Test the Connection

For this procedure, have OnePlan and Power Automate open in separate tabs in your browser.

  1. In OnePlan, go to a project or plan of your choice.

  2. Click on the user profile. Click Share With. Locate and select the plan id in the Shareable URL. The id is at the end of the URL following PlanId=. Copy the id.
    Share URL.png

  3. Go to Power Automate. Then paste the plan id you copied in step 2 into the id field within the Operations section.

  4. Use the GetPlan operation to test the connection. Select GetPlan from the Operations list. Then click Test operation. The test is successful if you receive a response and a Status (200).
    Test Connection.gif

    Test operation successful.png



Create a Flow in Power Automate

Finally, you need to create a test flow in Power Automate to confirm that your configuration is working properly.

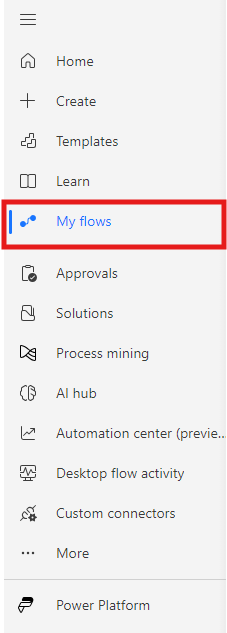

  1. In Power Automate, go to My Flows.
    My Flows Power Automate.png

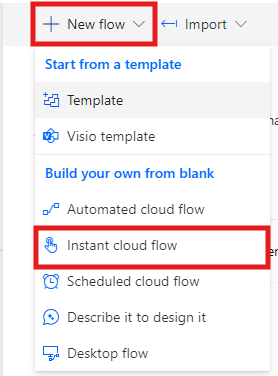

  2. Select New Flow > Instant cloud flow.
    New Flow Instant Cloud Flow.png

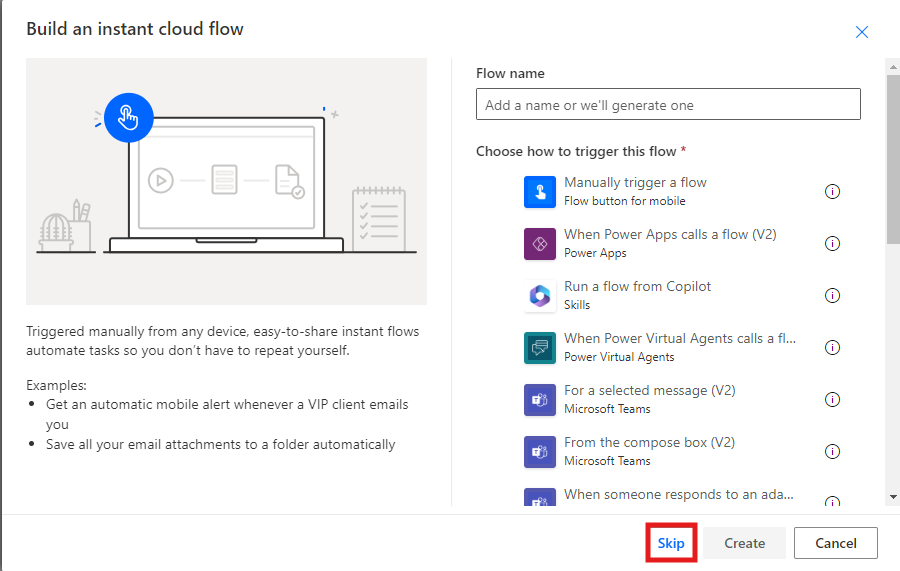

    The Build an instant cloud flow window will open. Click Skip.

    New instant cloud flow screen skip.png

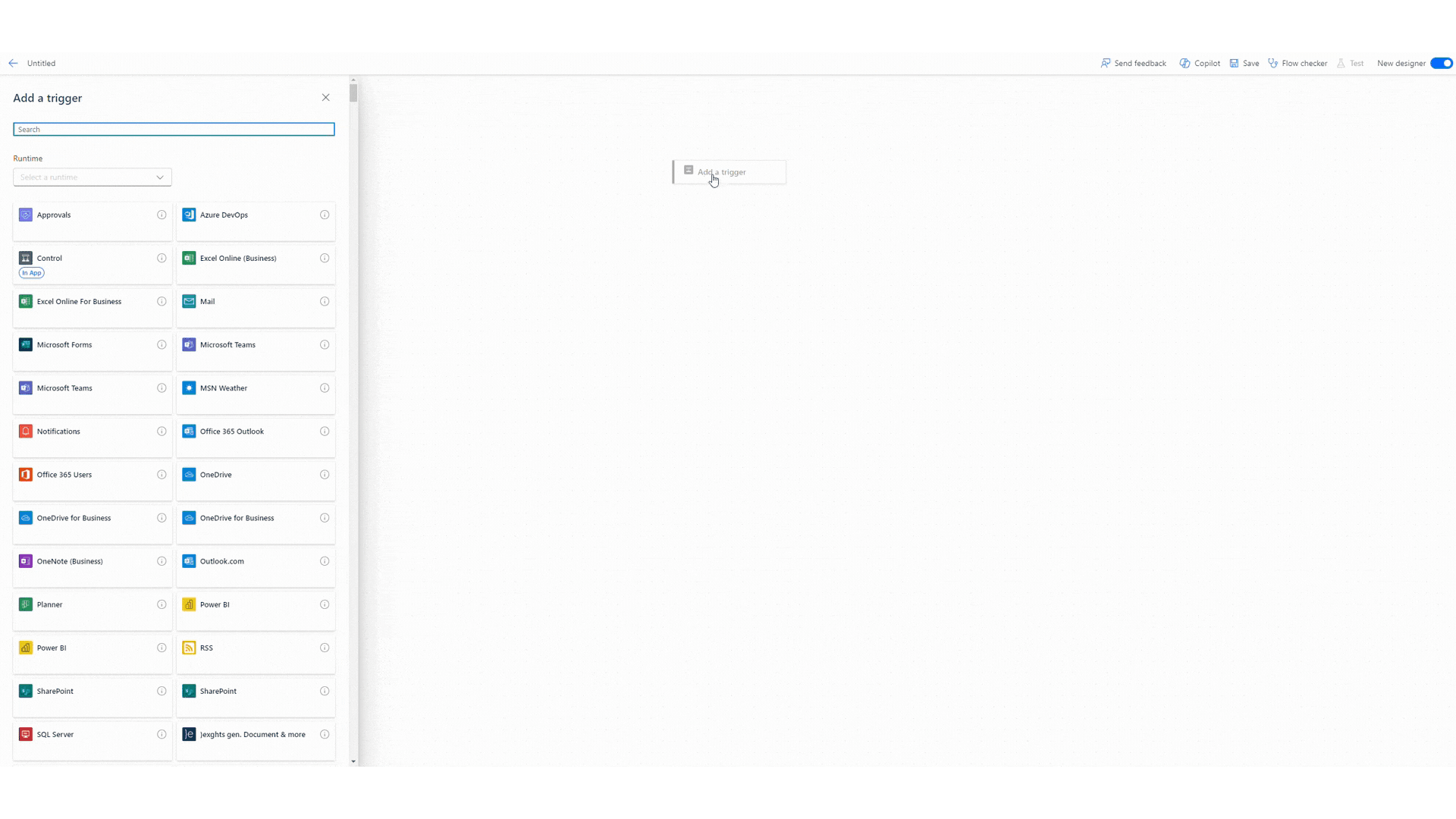

  3. In the next window, select Add a trigger and search for "OnePlan" in the search bar. Select When a Plan Gets Updated from the search results.
    Select a trigger.gif

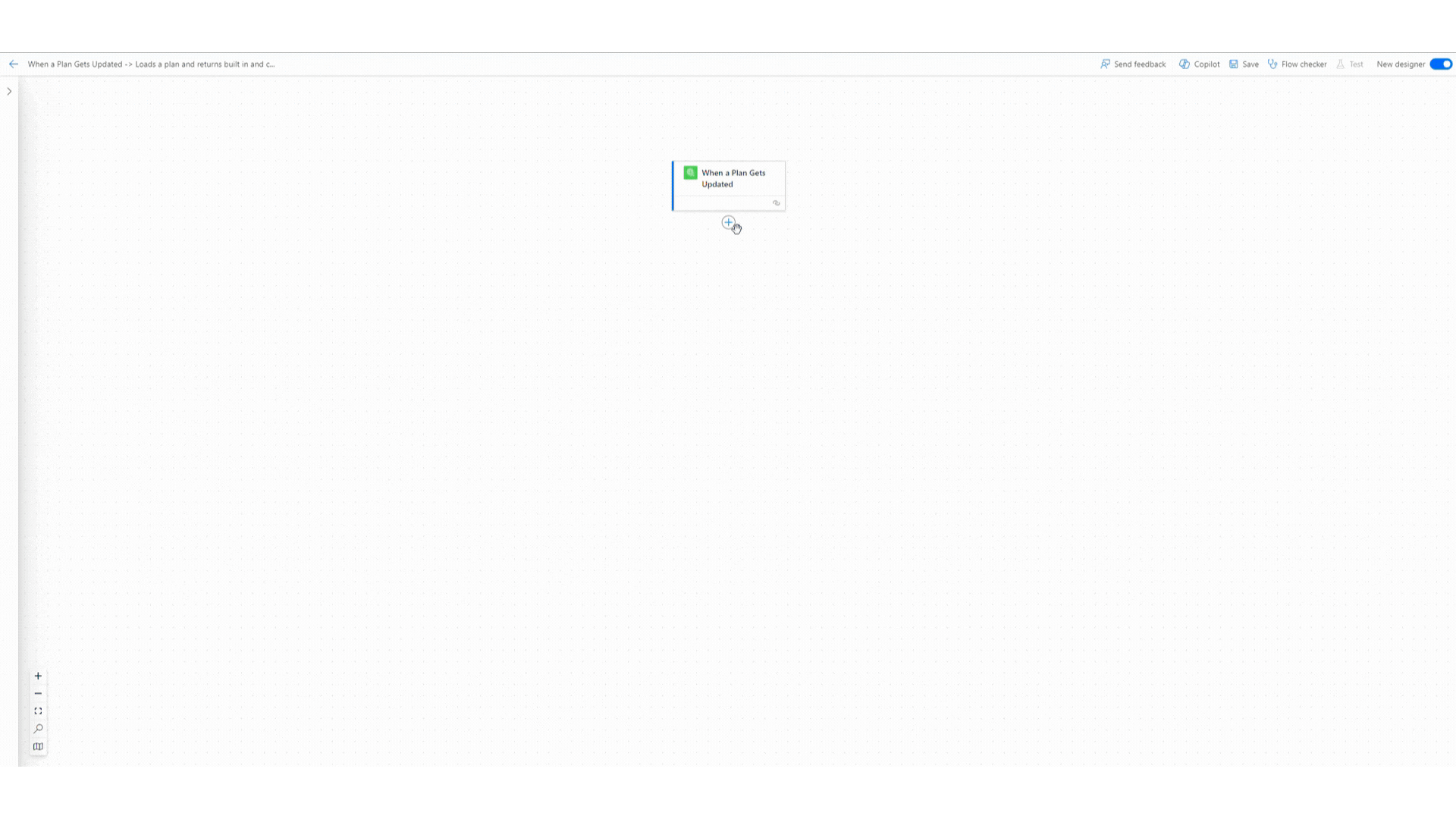

  4. Click the + icon > Add an action. The Add an action form will open.  Search for "OnePlan" in the search bar. Select Loads a plan and returns built in and custom fields by Plan ID from the results.

  5. Click into the Id field. Click on the lightning bolt icon, and select Id from the drop-down.
    Add Action.gif

  6. Enter a name for the new flow in the field in the top left of the window. Copy the flow name. Then click Save.

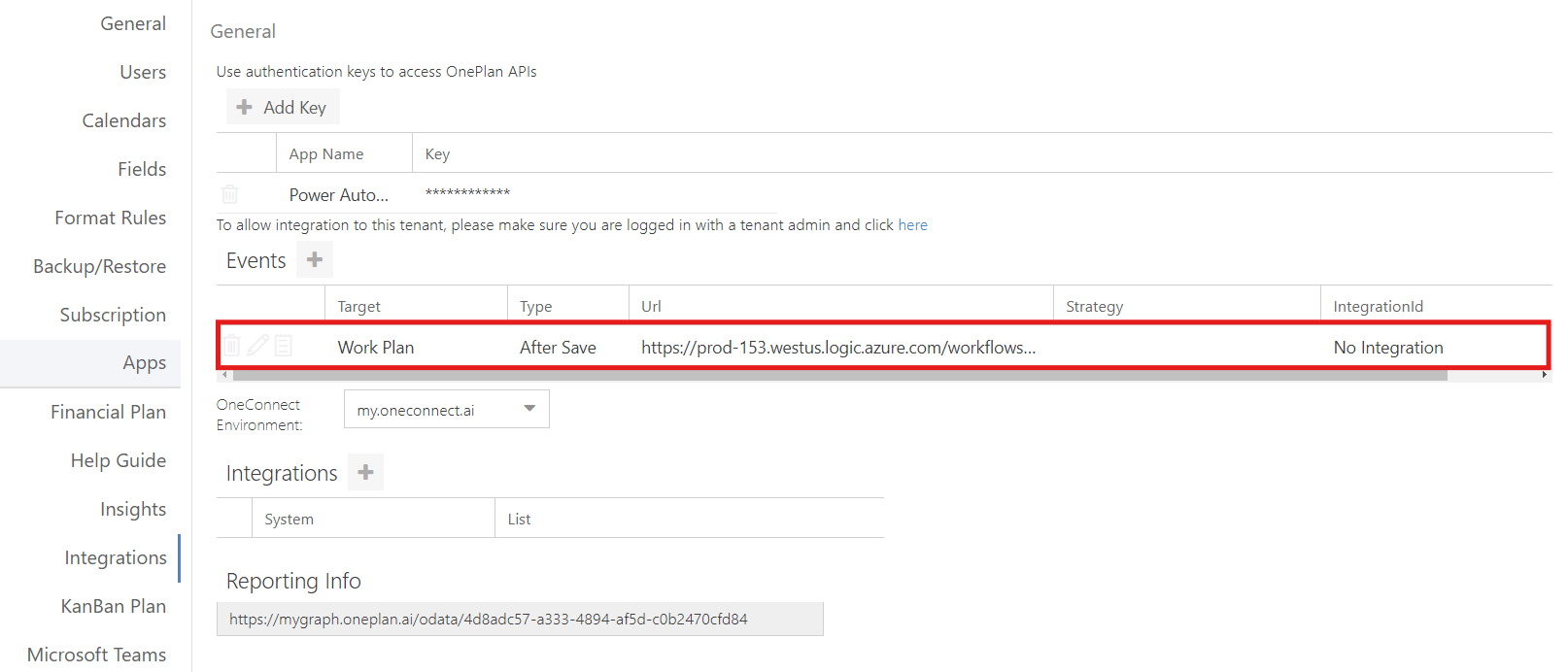

  7. Go to OnePlan. Go to the Admin pages > Integration. There should be a new item in Events. If there is not a new item in Events, try refreshing the page.
    New item in Events.png

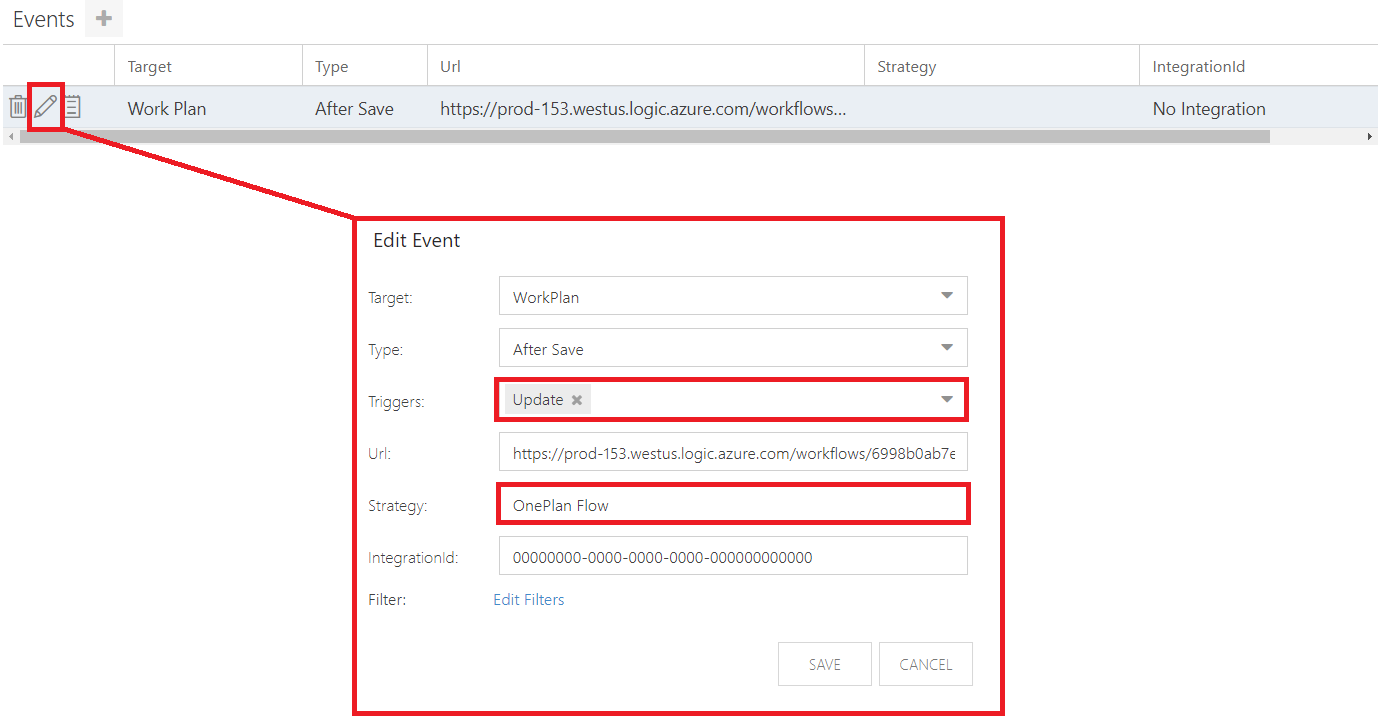

  8. Click the Edit icon next to the new event item. The Edit Event form will open. Update the Edit Event form.

    • In the Strategy field, paste the flow name from step 7.

    • Select the Update from the Triggers drop-down.

    Then click Save.

    Update Event Item.png

Test the Flow

  1. Go to Power Automate.

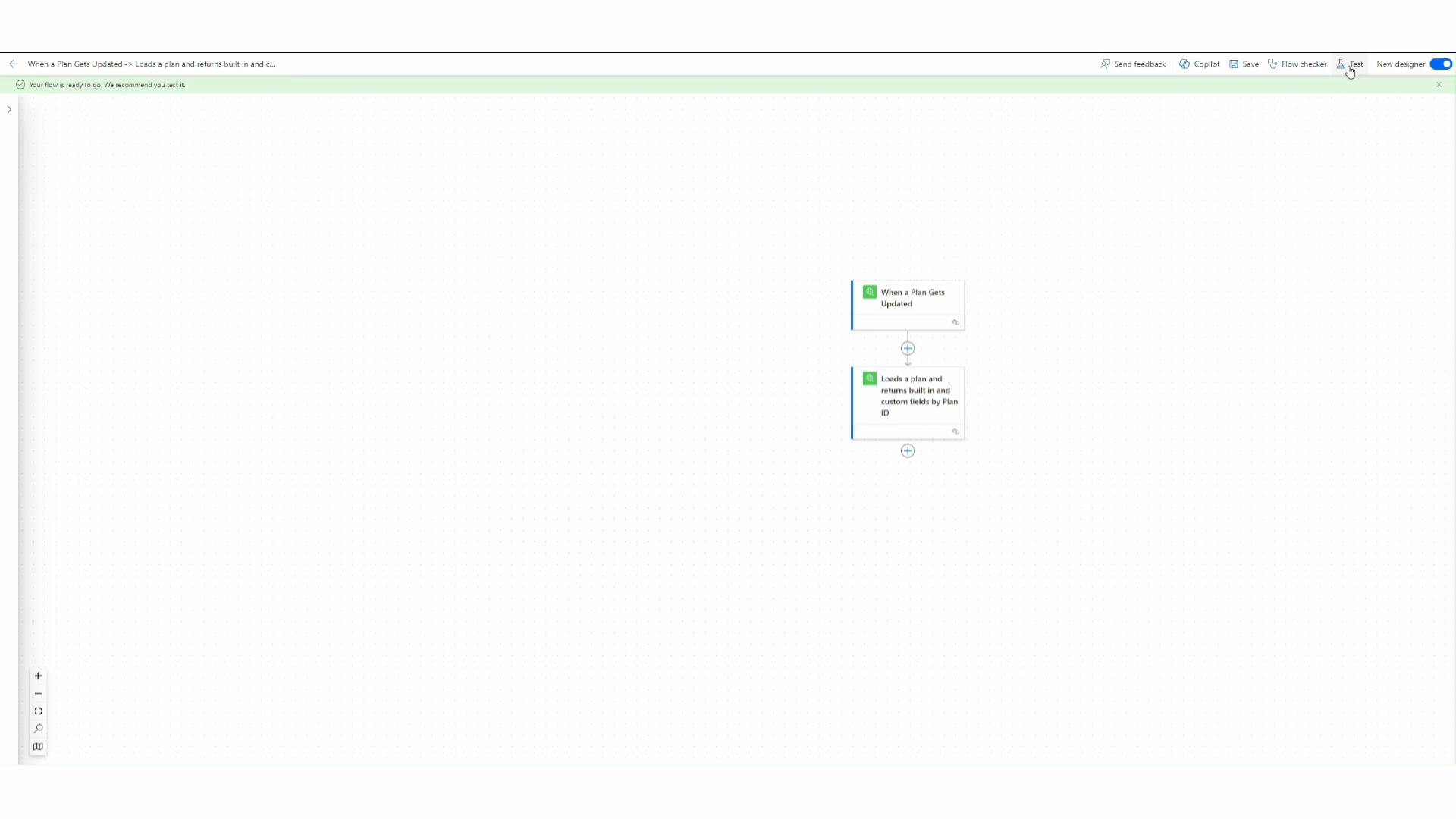

  2. Click Test > Manually > Test. The flow test will begin. But you need to make an update to your plan for the trigger to fire.

    Manually Test Flow.gif

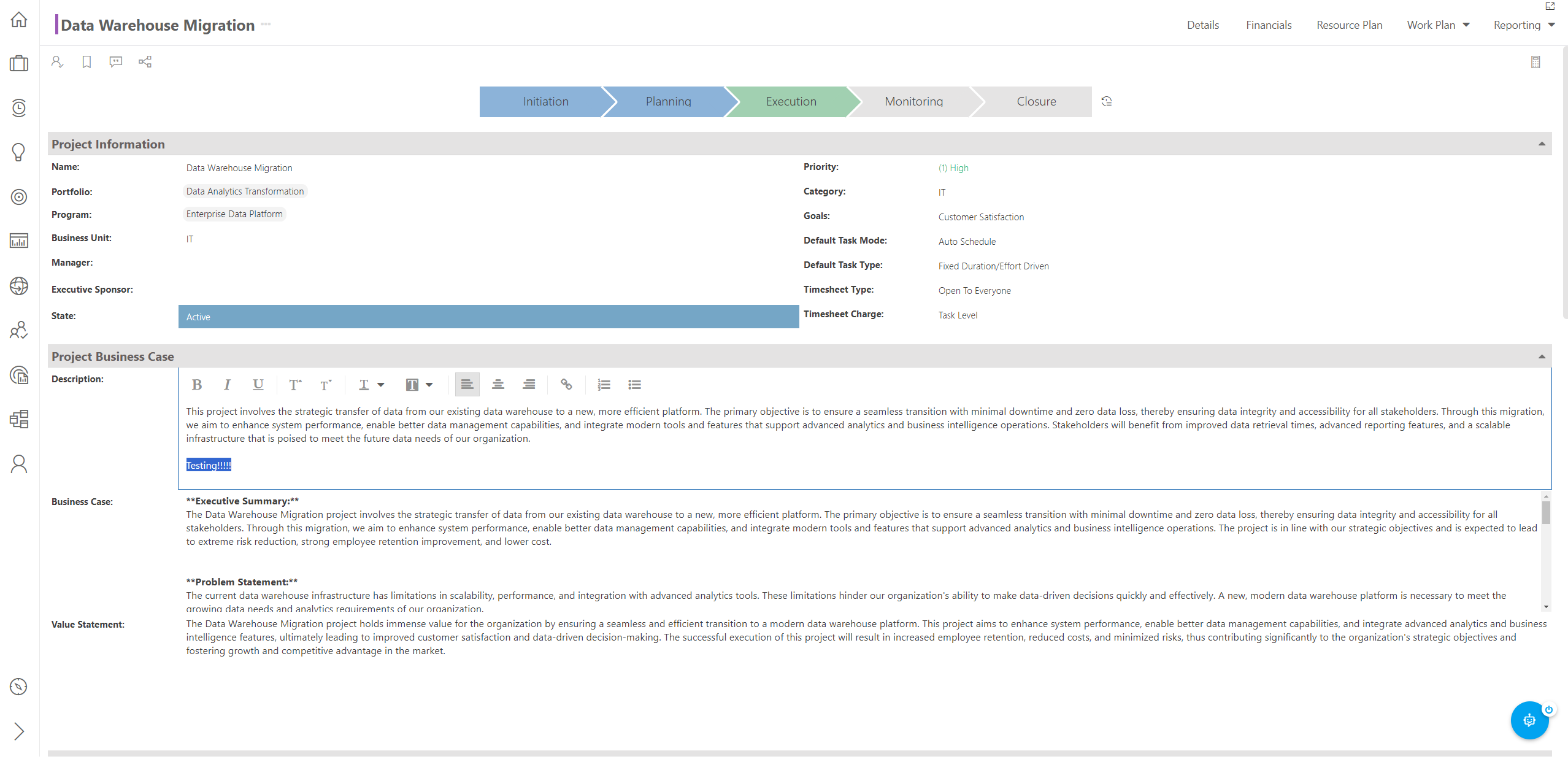

  3. Go to OnePlan. Go to the plan you selected in Test the connection. Make a change to any plan field on the Details page, such as the Description field.
    Screenshot 2024-07-31 111947.png

    Note

    You can update any plan-level field in the plan to test out the flow.

  4. Confirm that the event functions.

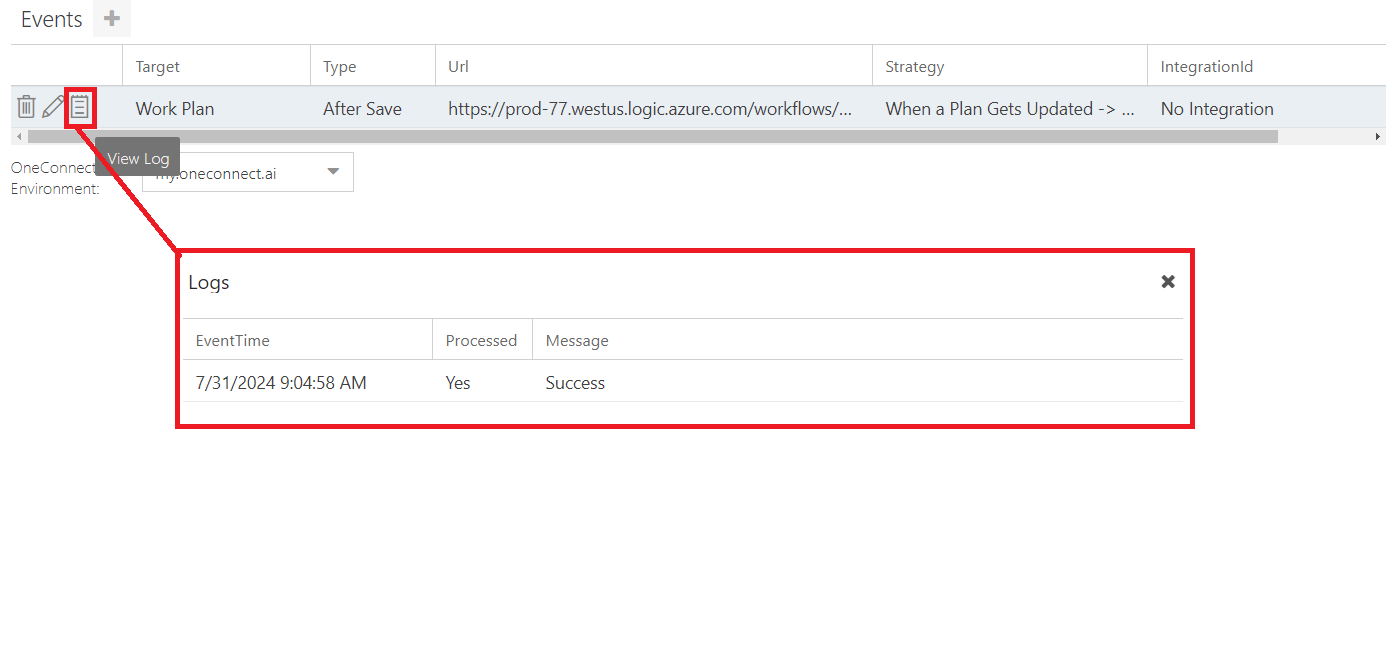

    1. Go to OnePlan Admin > Integration > Events. Click the View Log icon next to the appropriate event. There should be a new Success entry in the log.
      View logs.png

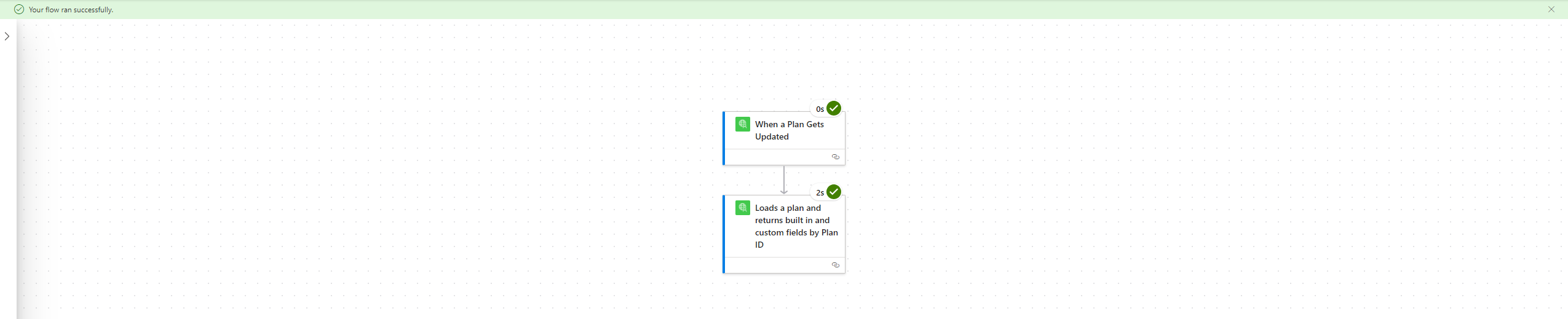

    2. Go to your flow in Power Automate. There should be a message stating "Your flow ran successfully."

      Flow Ran Successfully.png

Available Uses

Triggers

When a Step Changes: Triggers when a Process Step Changes.
When a Plan Gets Updated: Triggers when a Plan Gets Updated.
When a Plan is added: Triggers when a new Plan is added.

Actions

Create a New Plan: Creates a new Plan.
Update a Plan by Plan Id: Updates the Plan Fields by Plan Id.
Get Plan by Plan Id: Returns built in and custom fields by Plan Id.
Add/Update Integration to Plan: Adds or Updates Plan Integration Information.
Lookup Resource Id: Return a Resource Id using Email and Name.
Get Resource By Id: Returns built in and custom Resource fields by Resource Id.
Get Plan Type Id: Return the Plan Type Id by Plan Type Name.
Get Plan Id by Integration Information: Gets Plan Id of the integrated plan based on Flow ID and external Item Id.
Update Process Step by Plan Id: Updates the Plans Process Step by Plan Id.
Approve a Process Step by Plan Id: Approves a process step for a plan.
