Direct Answer: How Status Report Configuration Works in OnePlan
Status Report configuration in OnePlan is a structured process where an administrator enters Setup Mode, schedules reporting for a Plan Type, decides whether users can create reports ahead of schedule, builds the report form, and controls which process steps show Reporting - Status Reports in plan navigation. Configuration is completed from Setup Mode, and — once a Plan Type’s process step has Reporting - Status Reports enabled — can also be reached directly from an open Status Report using the gear icon.
What This Article Covers: Status Report Configuration
This article walks through the end-to-end process for configuring Status Reports in OnePlan, from entering Setup Mode through enabling reports in plan navigation, and explains how to control whether users can create reports ahead of schedule.
What you will accomplish After reading this article, you will understand the full Status Report configuration process and know which article to use for detailed steps at each stage.
Who This Article Is For: Status Report Configuration
This article is intended for:
- Admins and Portfolio Admins setting up Status Reports for one or more Plan Types
- PMO or governance leads defining what a status report captures and how often it runs
- Administrators migrating existing Status Report configuration knowledge to the new Setup Mode location
Status Report Configuration at a Glance
- Enter Setup Mode — Open Status Report configuration from Setup Mode, or directly from an open Status Report if already enabled for that Plan Type.
- Schedule and Set Behavior — Configure the schedule, decide whether to allow users to create reports ahead of schedule and whether to allow plan-level schedule overrides, and configure snapshot and report settings for a Plan Type.
- Build the Form and Enable Navigation — Build the report form across one or more pages using sections, fields, field sets, and dashboard widgets, and enable Reporting - Status Reports on the applicable process steps.
- Confirm Reporting Behavior — Confirm scheduled and (if enabled) ahead-of-schedule report creation behave as expected.
Step 1: Enter Setup Mode
In the access stage of Status Report configuration in OnePlan, you open Status Report configuration from Setup Mode.

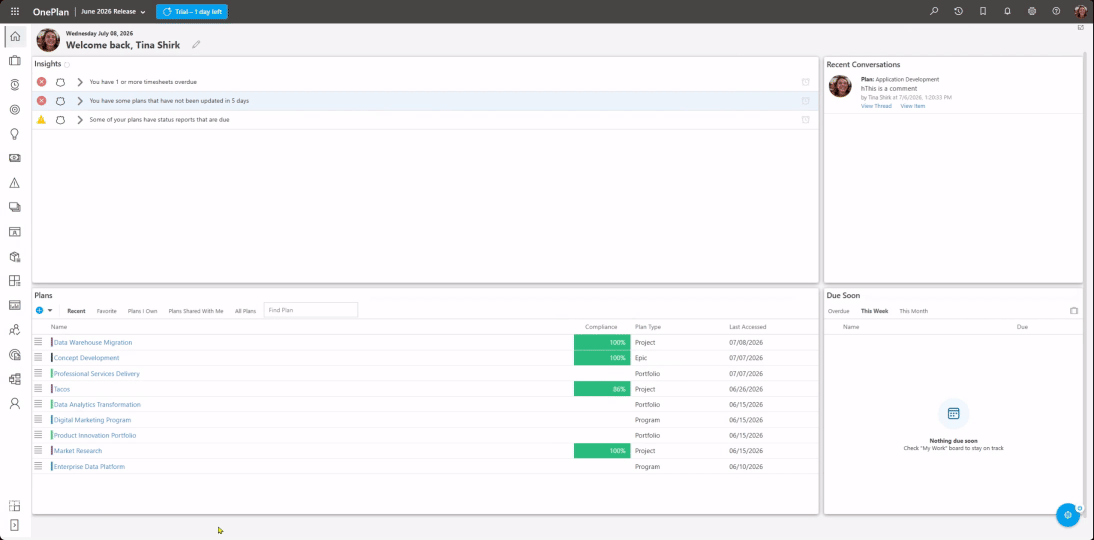

Expand the left navigation, select Setup to enter
Setup Mode, then select the Edit
(pencil) icon next to Status Reports.

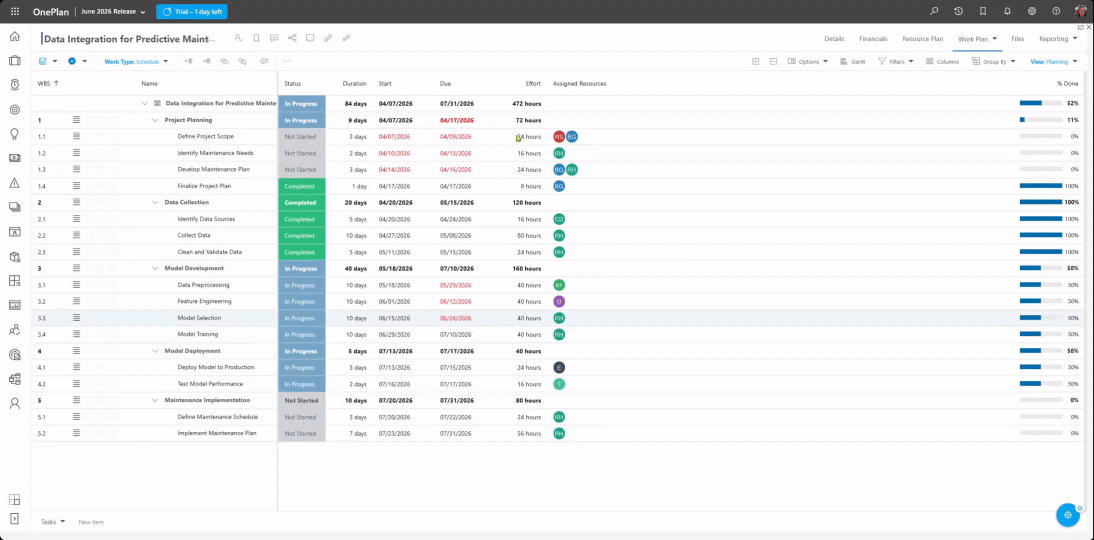

If a Plan Type’s process step already has
Reporting - Status Reports enabled, you can also open a
plan of that type, go to Reporting > Status
Report, and select the gear icon to reach the same
configuration.
Key concept: Status Report configuration was previously only available through the backend admin pages. It is now accessible from Setup Mode, and, once enabled for a Plan Type, directly from an open Status Report as well.
Step 2: Schedule and Set Behavior
In the scheduling and behavior stage of Status Report configuration in OnePlan, you select a Plan Type and configure when reports are generated and how users can submit them.
This stage covers:
- Selecting a Plan Type to configure

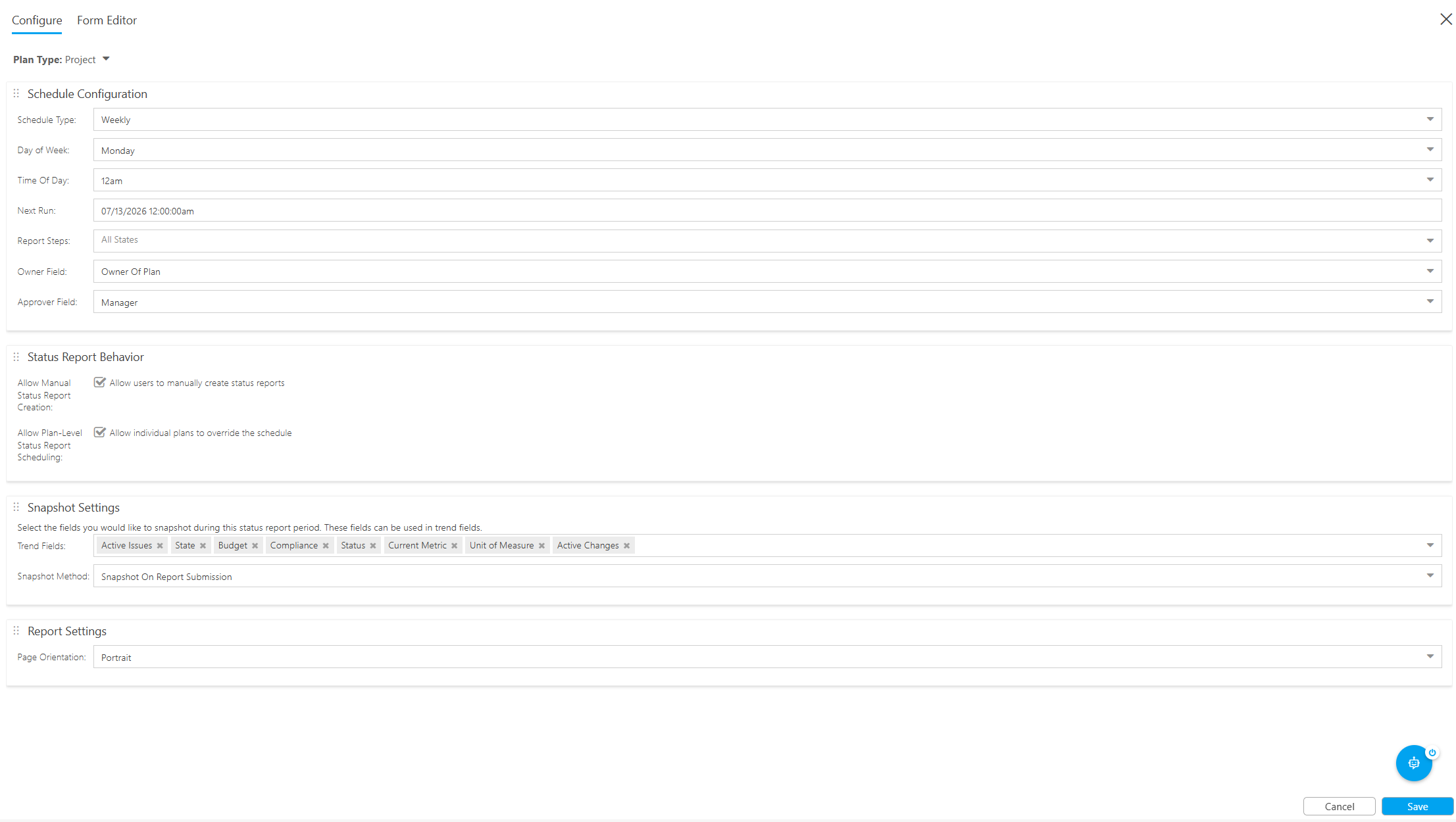

- Setting the Schedule Type, timing, Report Steps, Owner Field, and Approver Field under Schedule Configuration
- Deciding whether to enable Allow Manual Status Report Creation (lets users create a report ahead of schedule; submitting an existing report is never gated by this) and Allow Plan-Level Status Report Scheduling under Status Report Behavior
- Configuring Snapshot Settings, which capture historical values for Trend Fields
- Configuring Report Settings, including page orientation
For step-by-step instructions, see How to Set the Status Report Schedule and Behavior in OnePlan.
Key concept: Selecting a field under Trend Fields in Snapshot Settings captures its historical values, but does not by itself produce a trend graph. A Trend calculation must also be configured on that field under Fields > Calculations. See Plan Fields - Configure Field Calculations.
Step 3: Build the Form and Enable Navigation
In the display configuration stage of Status Report configuration in OnePlan, you build the report form and control where Reporting - Status Reports appears.
This stage covers:

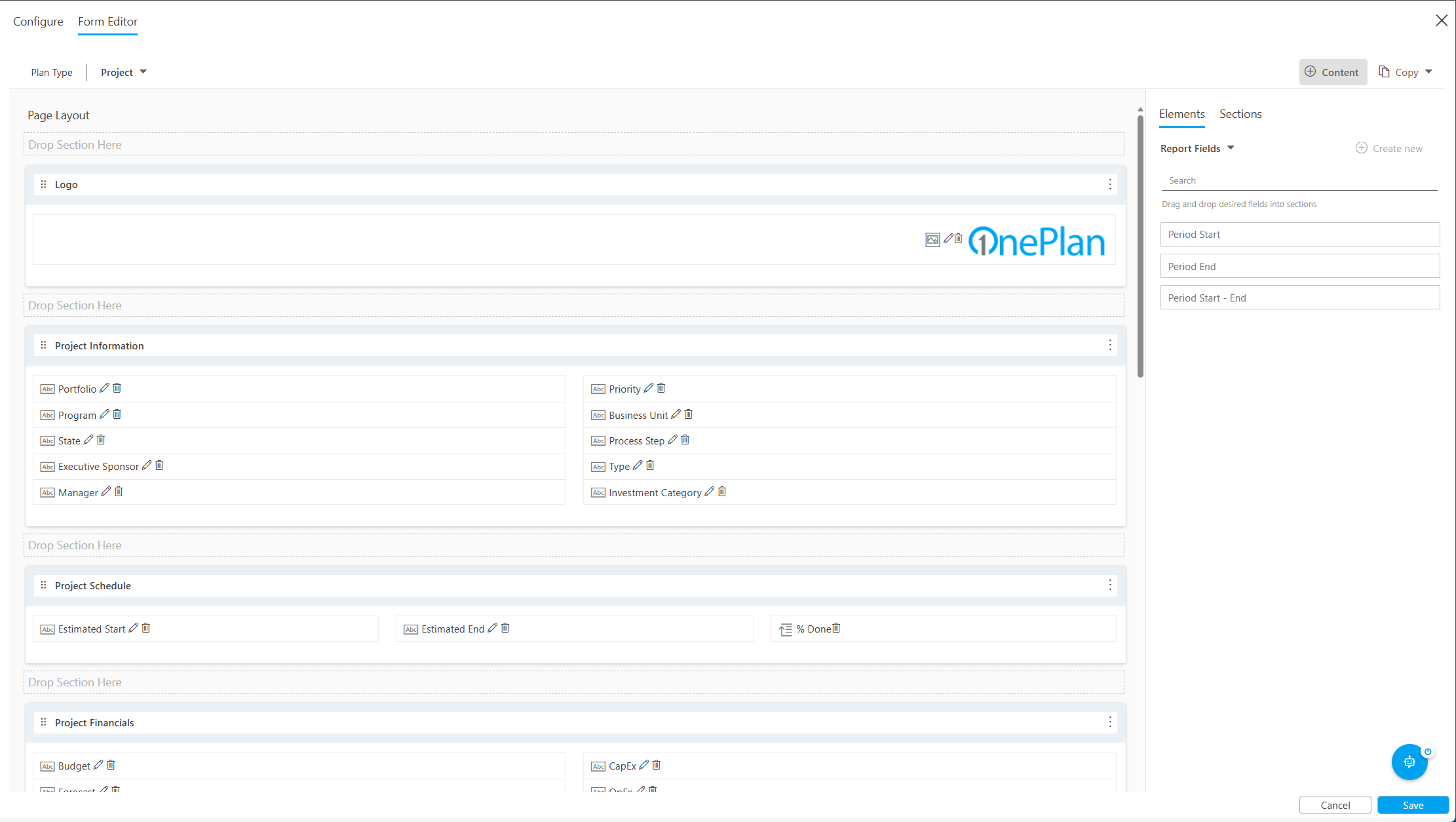

- Building the form in the Form Editor using the same drag-and-drop editor as Plan Details
- Organizing the form into Pages, which display as tabs at the top of the form
- Adding Plan Fields, Report Fields, and Summary Fields to the form
- Adding Field Sets to group related fields and display them as a Table or a Card
- Adding a Dashboard Widgets section to show charts on the form
- Copying the form to another Plan Type
- Enabling Reporting - Status Reports on the applicable process steps in Plan Details
For step-by-step instructions on building the form, see How to Build a Status Report Form in OnePlan, which summarizes each shared task and links to the matching Plan Details articles: How to Add and Arrange Sections on a Plan Details Form in OnePlan, How to Add and Configure Fields on a Plan Details Form in OnePlan, How to Add Tables and Other Elements to a Plan Details Form in OnePlan, and How to Organize a Plan Details Form into Pages in OnePlan. For step-by-step instructions on enabling plan navigation, see How to Enable the Reporting - Status Reports Tab in OnePlan.
Pages
Pages split a Status Report form into multiple independent layouts, each with its own sections, fields, and elements. Use pages to tailor one report to different audiences, such as executives, sponsors, and delivery teams. Every form starts with a default Overview page that cannot be deleted. Select the page drop-down in the Form Editor and choose Manage pages to add, rename, reorder, or delete pages. Existing forms were not changed — all existing content remains on the Overview page. Each page can be exported on its own.
Dashboard Widgets Section
A Dashboard Widgets section displays the same widgets used in reporting dashboards directly on the form. Widgets support work item, plan, financial plan, and resource plan data, and the charts are included when the Status Report is exported. Add the section from the Sections tab of the Content panel. For step-by-step instructions, see How to Add a Dashboard Widgets Section to a Plan Details Form in OnePlan.
Field Sets
A Field Set groups related fields into a single form element. Create one from the Elements tab of the Content panel by selecting Field Sets, then New, naming the set, choosing its fields, and choosing whether it displays as a Table or a Card. Status Reports display field sets the same way dashboards do, which keeps the layout familiar across reporting views.
Design Versioning
OnePlan saves a version of the Status Report design when a report is submitted after the design has changed. Submitted reports keep the design they were created with, so you can update the form at any time without altering past submissions.
Key concept: Changes you make to a Status Report form apply to reports going forward. Previously submitted reports retain the layout they were submitted with.
Step 4: Confirm Reporting Behavior
In the verification stage of Status Report configuration in OnePlan, confirm that scheduled report generation and, if applicable, ahead-of-schedule report creation behave as intended for the Plan Type:
- Scheduled reports — Reports generate automatically based on the Schedule Configuration set in Step 2.
- Ahead-of-schedule creation — Only available if Allow Manual Status Report Creation was enabled in Step 2. Users can manually create a status report for an individual plan ahead of the regular schedule, so important updates aren’t delayed. This setting only affects creating a new report early — submitting a report that already exists is always available to the Owner, regardless of this setting.
- Plan-level schedule overrides — Only available if Allow Plan-Level Status Report Scheduling was enabled in Step 2. A plan manager can set that individual plan’s own schedule, independent of the Plan Type schedule.
- Pages and widgets — Confirm each page of the form displays the expected sections, fields, field sets, and dashboard widgets, and that the charts and pages appear as expected in an exported report.
Reports created on schedule or ahead of schedule use the same Owner, Approver, form, and approval process, so submitting a report follows the same approval workflow regardless of when or how the report was created.
For end-user steps on submitting a report on or off schedule, see How to Submit a Status Report in OnePlan. For end-user steps on setting a plan-level schedule, see How to Set a Plan-Level Status Report Schedule in OnePlan.
Frequently Asked Questions: Status Report Configuration
Q: Where do I configure Status Reports in OnePlan? A: In OnePlan, Status Report configuration is accessible from Setup Mode — expand the left navigation, select Setup, then select the Edit icon next to Status Reports. If a Plan Type already has Reporting - Status Reports enabled, it can also be reached directly from an open Status Report using the gear icon.
Q: Do I need to configure anything extra to let users create status reports ahead of schedule? A: Yes. In OnePlan, an administrator must enable Allow Manual Status Report Creation in the Status Report Behavior section for that Plan Type. It is not on by default. This setting only controls creating a new report early — it does not affect submitting a report that already exists, which is always available to the Owner.
Q: Does a report created ahead of schedule skip the approval process? A: No. In OnePlan, status reports created ahead of schedule follow the same approval process as scheduled reports, preserving governance and auditability.
Q: What does Allow Plan-Level Status Report Scheduling do? A: In OnePlan, enabling Allow Plan-Level Status Report Scheduling adds a Schedule Configuration option to a plan’s status report (⋮ menu), letting a plan manager set that individual plan’s own Schedule Type — Default, Off, Weekly, Monthly, or Periodic — without affecting other plans of the same Plan Type. See How to Set a Plan-Level Status Report Schedule in OnePlan.
Q: Can I split a Status Report into multiple pages? A: In OnePlan, yes. Open the Form Editor for the Plan Type, select the page drop-down, and choose Manage pages to add pages. Each page appears as a tab with its own sections, fields, and elements, and each page can be exported on its own.
Q: Can I add charts to a Status Report? A: In OnePlan, yes. Add a Dashboard Widgets section from the Sections tab of the Content panel and choose the widgets to display. The charts are included when the Status Report is exported.
Q: If I change the Status Report form, what happens to reports that were already submitted? A: In OnePlan, submitted reports keep the design they were created with. When a report is submitted after the design has changed, OnePlan saves a version of the design, so you can update the form without altering past submissions.
Q: What order should I configure Status Reports in? A: In OnePlan, configure the schedule and behavior for a Plan Type first, then build the form and enable Reporting - Status Reports in plan navigation. Configuring the schedule first ensures the Plan Type and process steps you need are already defined.
What to Do Next: Status Report Configuration
Configure the schedule: - How to Set the Status Report Schedule and Behavior in OnePlan
Configure the form and navigation: - How to Build a Status Report Form in OnePlan - How to Enable the Reporting - Status Reports Tab in OnePlan
Add charts to your form: - How to Add a Dashboard Widgets Section to a Plan Details Form in OnePlan - How to Add Widgets to Your OnePlan Reporting Dashboard
Configure trend graphs: - Plan Fields - Configure Field Calculations
Learn about the feature: - Status Reports in OnePlan - Overview
See it from the end-user side: - Status Report Submission in OnePlan - Guided Workflow - How to Submit a Status Report in OnePlan - How to Set a Plan-Level Status Report Schedule in OnePlan - How to Export a Status Report in OnePlan
